Cosderma Picosecond Long-Pulse Nd: Yag Laser Q-Switched Laser Machine | Three System Laser Machine | Picosecond + Long Pulse ND: Yag Laser + Q Switch Laser Machine | Pico Long Pulse Laser System for Advanced Skin Treatment Solutions

Product Description: Introducing Cosderma Picosecond Long-Pulse Nd: Yag Laser Q-Switched Laser System | Three System Laser Picosecond + Long Pulse ND: Yag Laser + Q Switch Laser Machine, a versatile and powerful tool for comprehensive skin treatments. This advanced device combines the benefits of picosecond and long pulse Nd lasers to address a wide range of skin issues with precision and efficiency.

Cosderma Picosecond Long-Pulse Nd: Yag Q-Switched Laser System offers exceptional results in hair removal, vascular lesion treatment, skin rejuvenation, and tattoo removal. It utilizes the explosive effect of the Nd laser to target and break down pigment in the skin, facilitating natural elimination through the body's metabolic processes. The laser's heat effect also effectively treats capillary vessel dilation, resulting in clear, even-toned skin.

With wavelengths of 1064nm and 532nm, this system ensures optimal absorption for melanin and hemachrome, making it effective for various pigmentation issues, including birthmarks, sunspots, age spots, freckles, and more. The system's dual cooling technology provides a comfortable treatment experience by maintaining a stable skin temperature.

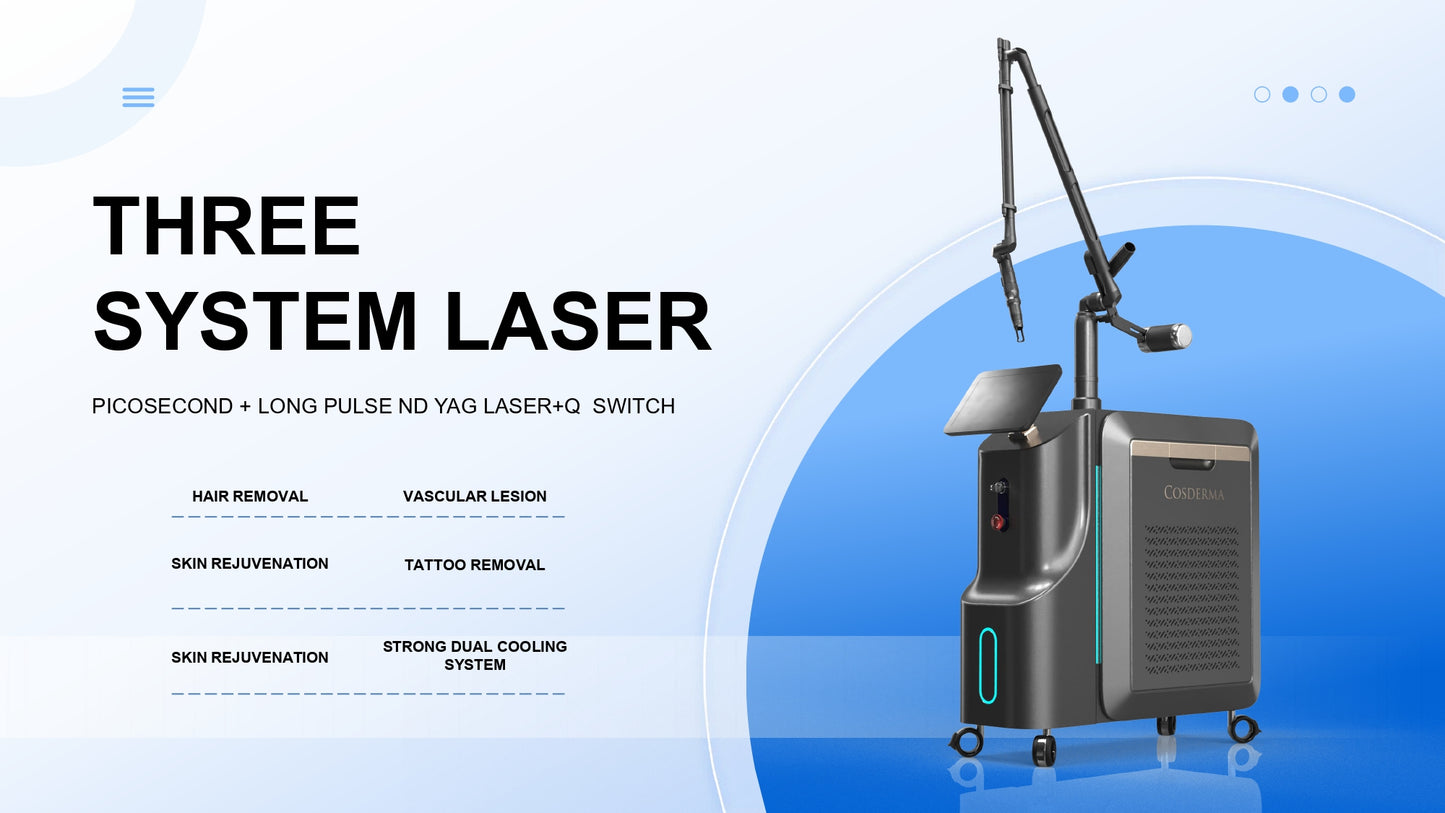

Three System Laser: Pico Long Pulse Laser

Cosderma Picosecond Long-Pulse Nd: Yag Q-Switched Laser System integrates three distinct laser technologies to provide a comprehensive solution for various skin treatments. This combination ensures precise, effective, and versatile treatment options for a wide range of dermatological conditions.

• Picosecond Laser System:
  • Picosecond Pulses (2000 ps): The ultra-short pulses of the picosecond laser effectively break down pigmentation in the skin, making it ideal for removing tattoos, treating pigmentation issues (such as freckles, sunspots, and age spots), and performing skin rejuvenation. The high energy of the picosecond pulses allows for targeted treatment with minimal damage to surrounding tissues.
  • 532nm and 1064nm Wavelengths: These wavelengths provide versatility in treating different types of pigmentation. The 532nm wavelength targets superficial pigmentation, while the 1064nm wavelength penetrates deeper into the skin, making it effective for more complex pigmentation issues.
• Long Pulse Nd Laser System:

  • Long Pulse Mode (500-5000 us single pulse, 100-300 µs multi-pulse): The long pulse mode of the Nd laser allows for deep penetration into the skin, making it suitable for treating vascular lesions, performing hair removal, and stimulating collagen production for skin rejuvenation. The longer pulse durations ensure that the laser energy is delivered in a controlled manner, reducing the risk of side effects.
  • 1064nm Wavelength: This wavelength is effective for deeper skin treatments, such as targeting vascular lesions (like spider veins) and hair removal, while also promoting collagen remodeling for improved skin texture and elasticity.
• Q-Switched Nd Laser System:

• • Q-Switch Technology: This system produces very short, high-energy pulses, making it highly effective for breaking down pigments in tattoos and treating pigmented lesions. The rapid delivery of energy shatters the pigment particles into smaller fragments, which are then naturally eliminated by the body.
  • Dual Cooling System: The laser system is equipped with a strong dual cooling system that ensures patient comfort during treatments. The cooling system maintains a stable skin temperature, protecting the skin from heat damage and reducing discomfort during the procedure.


Key Features:

• Long Pulse Duration:
  • Single Pulse Duration: Ranges from 500 to 5000 microseconds (µs).
  • Multiple Pulse Duration: Ranges from 100 to 300 microseconds (µs).
  • The extended pulse duration allows for gradual heating of the target area, reducing the risk of damage to surrounding tissues and enhancing patient comfort.
• Wavelength:
  • 1064nm: The Nd laser emits light at a wavelength of 1064 nanometers, which is highly effective for deeper skin treatments.
  • The longer wavelength penetrates the skin more deeply than shorter wavelengths, making it ideal for treating larger and deeper blood vessels, hair follicles, and collagen fibers.
• Powerful and Adjustable Energy Output:
  • Maximum Energy: Up to 800 millijoules (mj) for single pulse and up to 1600 millijoules (mj) for double pulse.
  • Adjustable energy settings allow for customization based on the specific treatment and patient skin type.
• Spot Size Variability:
  • Adjustable Spot Size: From 2mm to 10mm, providing flexibility for different treatment areas and conditions.
  • The variable spot size enhances the precision and effectiveness of treatments, allowing for both focused and larger area applications.
• High Repetition Rate:
  • Maximum Repetition Rate: Up to 10Hz.
  • The high repetition rate enables faster treatment sessions, making the process more efficient and convenient for both the practitioner and the patient.
• Cooling Systems:
  • Dual Cooling System: Ensures patient comfort by maintaining a stable skin temperature during treatments.
  • The cooling system helps protect the epidermis from heat damage and reduces the risk of side effects.

System Features:

• User Interface: Touchscreen control panel for easy operation
• Safety Features: Integrated cooling system, adjustable energy settings
• Design: Ergonomic handpieces for comfort and precision during treatments

Technologies:

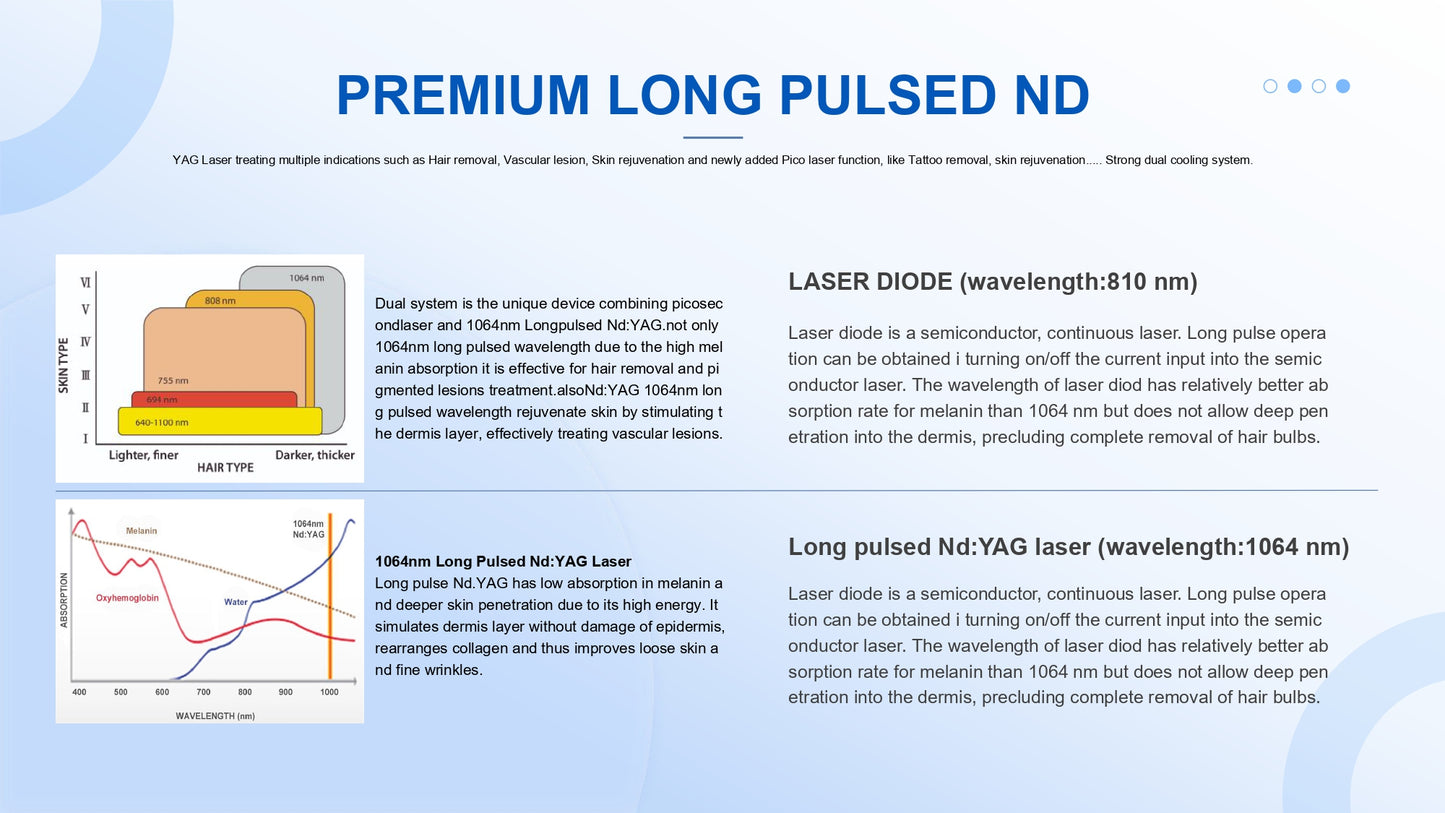

• Nd Laser Technology:
  • Picosecond Nd Laser: This technology delivers ultra-short laser pulses in the picosecond range (2000 ps), which is highly effective for breaking down pigment in the skin for treatments such as tattoo removal, pigmentation correction, and skin rejuvenation.
  • Long Pulse Nd Laser: This technology delivers longer laser pulses, which are effective for deep skin penetration, targeting vascular lesions, and stimulating collagen production for skin tightening and rejuvenation.
• Q-Switch Technology:
  • This technology allows the laser to produce very short, high-energy pulses, which are particularly effective for removing pigmented lesions and tattoos.
• Dual Cooling System:
  • The machine is equipped with a strong dual cooling system that maintains a stable skin temperature during treatments, providing patient comfort and protecting the skin from heat damage.
• Multiple Wavelengths:
  • 1064nm Wavelength: Suitable for deeper skin penetration, effective for treating vascular lesions, hair removal, and skin rejuvenation.
  • 532nm Wavelength: Effective for treating superficial pigmentation issues, such as freckles and sunspots.
• Various Handpieces:
  • Zoom Handpiece: Allows adjustable spot sizes from 2mm to 10mm.
  • Collimated Handpiece: Provides a fixed spot size, typically used for soft peeling and superficial treatments.
  • Cellular Handpiece: Designed for fractional treatments, improving skin texture and reducing fine lines.
  • Fractional Handpiece: Generates multiple fractional beams for skin resurfacing and scar treatment.
  • Dye Handpieces (650nm and 585nm): Used for specific vascular treatments and other specialized applications.
• Adjustable Pulse Width and Repetition Rate:
  • The system offers adjustable pulse widths (500-5000 us for single long pulse and 100-300 µs for multi-pulse) and a maximum repetition rate of up to 10 Hz, allowing customization of treatments based on patient needs and treatment goals.


Applications:

• Hair Removal (Depilation):
  • The long-pulsed Nd laser targets hair follicles, providing effective and long-term hair reduction.
  • Suitable for all skin types, including darker skin tones, due to the 1064nm wavelength's deeper penetration and lower melanin absorption.
• Vascular Lesions:
  • Treats conditions such as spider veins, varicose veins, and other vascular anomalies.
  • The laser energy is absorbed by the blood vessels, causing them to coagulate and eventually be reabsorbed by the body.
• Skin Rejuvenation:
  • Stimulates collagen production, improving skin texture, firmness, and elasticity.
  • Effective for reducing fine lines, wrinkles, and overall skin tightening.
• Pigmentation Treatments:
  • Addresses deeper pigmentation issues, including melasma, post-inflammatory hyperpigmentation (PIH), and age spots.
  • The laser targets melanin in the skin, breaking down the pigment and allowing it to be naturally eliminated.
• Acne and Acne Scars:
  • Reduces active acne by targeting the sebaceous glands and killing acne-causing bacteria.
  • Improves the appearance of acne scars by promoting collagen remodeling and skin regeneration.
• Tattoo Removal:
  • Although primarily used for pigmentation and vascular treatments, the long-pulsed Nd laser can also assist in tattoo removal, especially for deeper ink particles.
• Nevus of Ota & ABNOM Removal:
  • Effectively treats Nevus of Ota, a blue or gray patch on the face that appears at birth or during adolescence.
  • Also treats ABNOM (Acquired Bilateral Nevus of Ota-like Macules), which are similar to Nevus of Ota but appear later in life.
• Freckle, Lentigines, Café-au-lait Spot, Becker's Nevus, Age Spot Improvement:
  • Targets and improves various pigmentation issues including freckles, lentigines, café-au-lait spots, Becker's nevus, and age spots.
  • The laser's precise energy delivery breaks down the pigments, leading to a clearer and more even skin tone.


Therapy Principle of Cosderma Picosecond Long-Pulse Nd: Yag Q-Switched Laser System

Cosderma Picosecond Long-Pulse Nd: Yag Q-Switched Laser System operates on several core therapy principles to effectively treat various skin conditions. Here are the detailed principles underlying its therapeutic applications:

1. Therapy of Epidermis and Dermis Pigmentation:

• Explosive Effect of Nd Laser:
  • The laser delivers high-energy pulses in nanoseconds, which permeate the epidermis and reach the dermis.
  • This energy targets pigment masses in the skin, causing them to swell and break into smaller fragments.
  • These pigment fragments are then naturally eliminated by the body's metabolic processes.
  • Applications: Treatment of birthmarks (Ota nevus, Ito nevus, black nevus), sun-burn spots, age spots, freckles, and senior fleck.


2. Therapy of Capillary Vessel Dilation:

• Heat Effect of Nd Laser:
  • The laser's energy is absorbed by hemachrome (the pigment in blood) in the capillary vessels.
  • The absorbed energy causes the capillary vessels to coagulate and eventually disappear.
  • Applications: Treatment of vascular lesions, spider veins, and other capillary vessel anomalies.

3. Skin Rejuvenation:

• Laser Peeling and Collagen Stimulation:
  • The system's laser energy stimulates the dermis layer without damaging the epidermis.
  • This process promotes collagen remodeling, leading to improved skin texture and elasticity.
  • Applications: Reduction of fine lines, wrinkles, and improvement of overall skin tone and texture.

4. Tattoo Removal:

• Picosecond Laser Pulses:
  • The ultra-short pulses of the picosecond laser create a photomechanical effect that shatters tattoo pigments into tiny particles.
  • These particles are then gradually eliminated by the body's immune system.
  • Applications: Removal of blue, black, red, and brown tattoos, as well as lip lines and eyebrow lines.

5. Melasma and Post-Inflammatory Hyperpigmentation (PIH) Improvement:

• Targeted Pigment Disruption:
  • The laser targets melanin pigments responsible for melasma and PIH.
  • The precise energy delivery breaks down the excess pigment without damaging surrounding tissue.
  • Applications: Treatment of melasma and PIH to achieve a more even skin tone.

6. Soft Peeling and Fractional Treatments:

• Fractional Laser Technology:
  • The system uses fractional handpieces that deliver laser energy in a grid-like pattern, creating micro-injuries in the skin.
  • These micro-injuries stimulate the skin's natural healing process, promoting the formation of new, healthy skin.
  • Applications: Skin resurfacing, scar treatment, and overall skin rejuvenation.

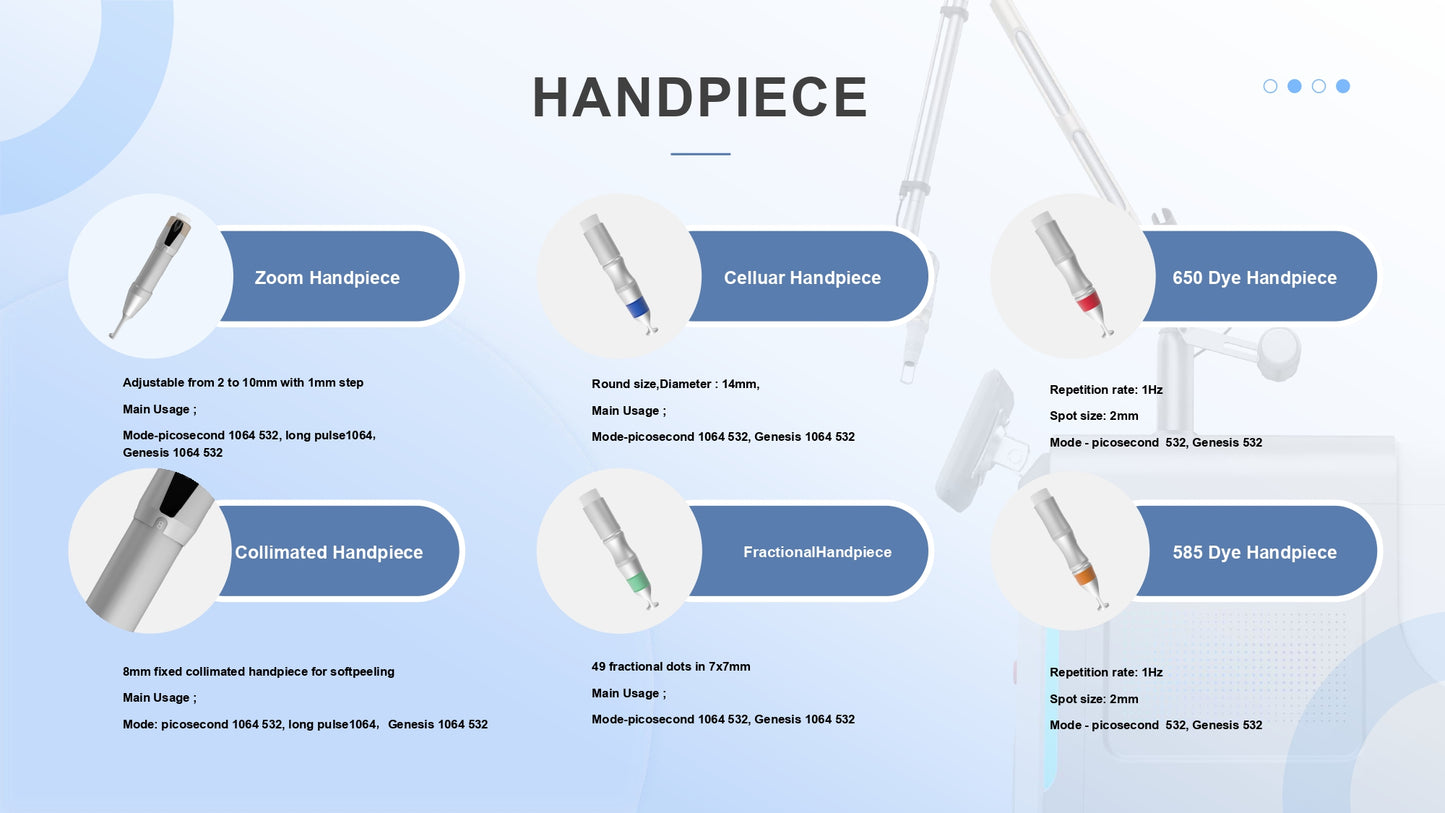

Handpieces:

Cosderma Picosecond Long-Pulse Nd: Yag Q-Switched Laser System comes with specialized handpieces designed to optimize the delivery of laser energy for various treatments. These handpieces ensure precise targeting and enhanced treatment efficacy.

• Zoom Handpiece:
  • Feature: Adjustable zoom capability for variable spot sizes.
  • Applications: Versatile for general treatments, allowing for quick adjustments in spot size during procedures.
• Cellular Handpiece:
  • Feature: Enhanced targeting for cellular-level treatments.
  • Applications: Effective for detailed and precise applications, including treating smaller lesions and delicate areas.
• 650 Dye Handpiece:
  • Feature: Utilizes 650nm wavelength for specific pigmentation treatments.
  • Applications: Effective for treating superficial pigmentation issues such as age spots and freckles.
• Collimated Handpiece:
  • Feature: Provides a collimated beam for deep tissue penetration.
  • Applications: Ideal for vascular treatments and deeper skin rejuvenation therapies.
• Fractional Handpiece:
  • Feature: Fractional laser delivery creates micro-injuries in a grid-like pattern.
  • Applications: Skin resurfacing, acne scar treatment, and collagen stimulation.
• 585 Dye Handpiece:
  • Feature: Uses a 585nm wavelength for targeting vascular and pigmented lesions.
  • Applications: Effective for treating conditions like vascular birthmarks, rosacea, and certain pigmentation issues.

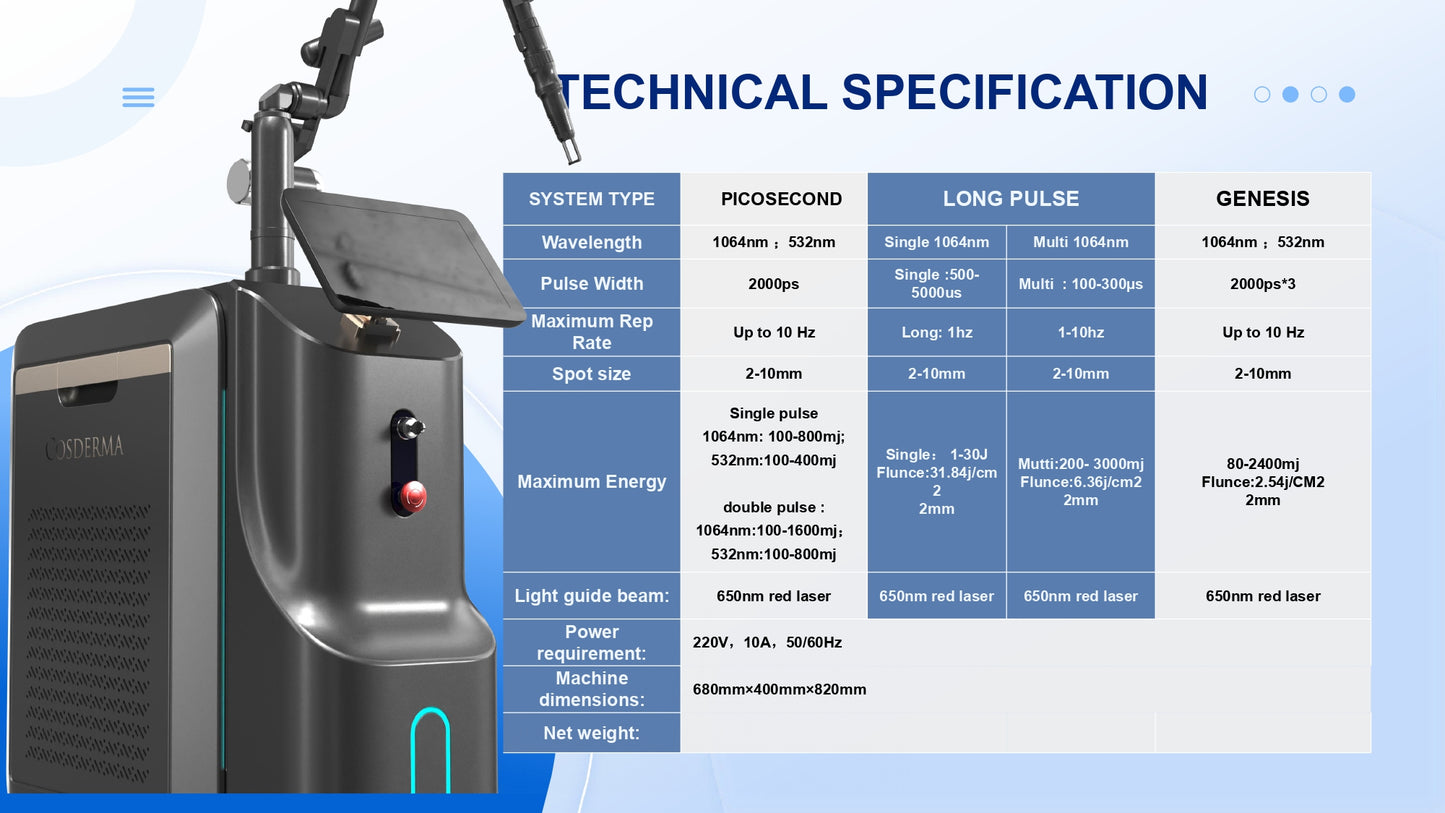

Technical Specifications:

• System Type:
  • Picosecond + Long Pulse Nd Laser + Q-Switch
• Wavelengths:
  • 1064nm
  • 532nm
• Pulse Width:
  • Picosecond mode: 2000ps
  • Long Pulse mode: Single: 500-5000us, Multi: 100-300µs
• Maximum Repetition Rate:
  • Up to 10 Hz (Picosecond mode)
  • Long Pulse mode: 1-10 Hz
• Spot Size:
  • Adjustable from 2mm to 10mm
• Maximum Energy:
  • Single pulse: 1064nm: 100-800mj; 532nm: 100-400mj
  • Double pulse: 1064nm: 100-1600mj; 532nm: 100-800mj
  • Fluence: 31.84 j/cm² for Single, 6.36 j/cm² for Multi
• Light Guide Beam:
  • 650nm red laser
• Power Requirement:
  • 220V, 10A, 50/60Hz
• Machine Dimensions:
  • 680mm × 400mm × 820mm
• Net Weight:
  • Not specified

Summary:

Cosderma Picosecond Long-Pulse Nd: Yag Q-Switched Laser System is a versatile and powerful tool in the field of dermatology and aesthetics. Its advanced technology allows for effective treatment of a wide range of skin conditions, providing patients with safe, efficient, and comfortable procedures. By leveraging the benefits of long-pulse durations, variable spot sizes, specialized handpieces, and dual cooling systems, this laser system ensures optimal outcomes with minimal downtime.

Achieve superior skin rejuvenation and aesthetic results with Cosderma Picosecond Long-Pulse Nd: Yag Q-Switched Laser System, the ultimate solution for modern dermatological treatments.
